Conductivity Controller
ECM01 Conductivity Controller
Committed to Process Automation Solutions

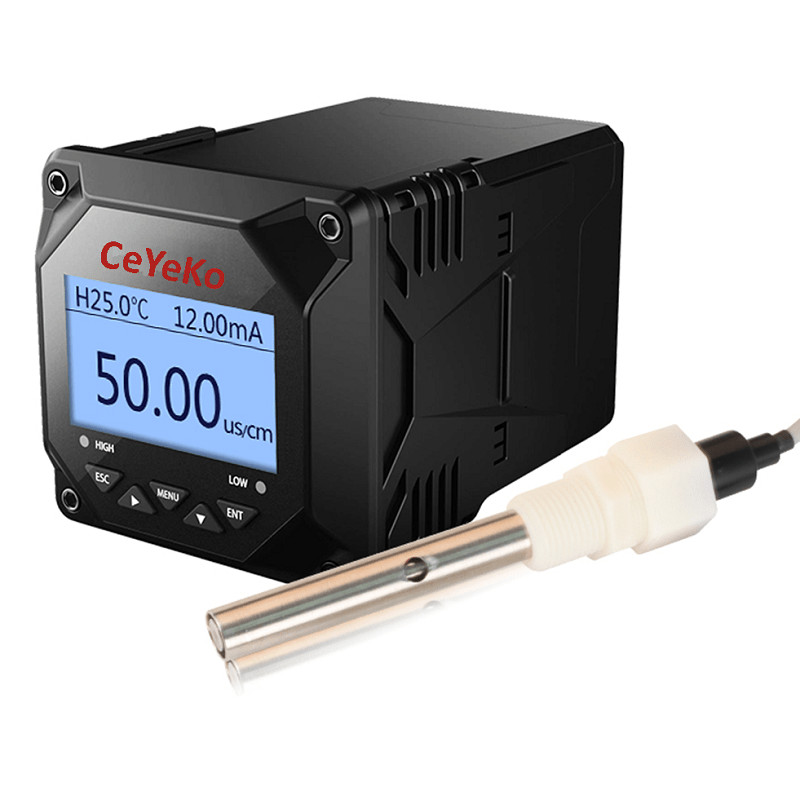

The model ECM01 is used for the conductive measurement / control of electrolytic conductivity, resistivity or the TDS value. Conductivity is a function of ion concentration, ionic charge, and ion mobility. Ions in water conduct current when an electrical potential is applied across electrodes immersed in the solution. A controller system consists of a microprocessor-based controller and a conductivity probe.
4 Electrode cells (K=0.01, 0.1, 1.0 and 10.0) can be connected to the device. Temperature serves as the second input variable, measured by a NTC10K/ PT1000 probe. Depending on the measured variable, it is therefore possible to implement specific, automatic temperature compensation.
All adjustments to the current outputs, alarm relays, and calibration of the conductivity and temperature inputs can be made using the controller’s membrane keypad.
Features
￭ Direct change over to
￭ – Conductivity (μS/cm )
￭ – Resistivity ( MΩ x cm)
￭ – TDS measurement (ppm )
￭ Automatic temperature compensation
￭ 4-20 mA Isolated Output
￭ IP54 water resistant and corrosion proof enclosure
￭ Using the setup program: user-friendly programming
￭ RS485 communication
￭ Relay output
￭ Large LCD display with background lighting
Applications:
￭ Reverse Osmosis | ￭ Printing |
￭ Process Control | ￭ Aquaculture |
￭ Seawater Desalination | ￭ Agriculture |
￭ Food Processing | ￭ Environmental Studies |
￭ Plating | ￭ Medical |
￭ Power Plants | ￭ Boilers |
￭ Laboratories | ￭ Cooling Towers |
Parameters
Screen Size | 2.8 inch |
Dimensions | Overall Dimensions: 100mm*100mm*150mm(H*W*D) Cutout Dimensions：92.5mm*92.5mm(H*W) |
Weight | 0.65Kg |
Ingress Protection | IP54 |
Measure Variables | EC / TDS / Resistivity |
Measure Range | 0.01 Electrode ：0.02 ~ 20.00μS/cm 0.1 Electrode ：0.20 ~ 200.0μS/cm 1.0 Electrode ：2.00 ~ 2000μS/cm 10.0 Electrode ：0.02 ~ 20.00mS/cm Measure range for extended range controller： 0.01 Electrode ：0.20 ~ 200.0μS/cm 0.1 Electrode ：2.00 ~ 2000μS/cm 0.1 Electrode ：0.02 ~ 20.0mS/cm 10.0 Electrode ：0.20 ~ 200.0mS/cm Temperature Range : -10 ~130°C |
Temperature Compensation | NTC10K / PT1000 Temperature Compensation ：Manual / Automatic |
Accuracy | EC / TDS / Resistivity : ±1%FS NTC10K ： (-10~5°C) ±2°C；(5~60°C) ±0.2°C；(60~130°C) ±2°C PT1000 ： (-10~5°C) ±2°C；(5~130°C) ±0.2°C |
Output | Isolated 4-20mA output maximum loop is 750Ω, ±0.2%FS |
Communication Protocol | MODBUS-RTU RS485 |
Alarm Relay | Pickup / Breakaway AC250V / 3A |
Relative Humidity | 10 ~ 85 % RH (No Condensation) |
Operating Temperature | 0 ~ 60°C |
Power Supply | 220VAC ±10% 50Hz/60Hz |
Storage Conditions | Temperature ：-15 ~ 65°C Relative Humidity ：5 ~ 95 % RH (No Condensation) |
